Revolutionary Axial Flux Printed Circuit Board (PCB) Stator Motor

The innovation of PCB (Printed Circuit Board) stator motor stands out as a game-changer. In the world of electric motors, it is pushing the boundaries of efficiency, size, and performance.

Combining the principles of electronics and electromagnetics, this emerging technology promises to revolutionize various industries, from electric vehicles to industrial automation. In this article, we delve into the workings, advantages, and potential applications of the PCB stator motor.

Understanding PCB Stator Motor:

Traditional electric motors consist of a stator (the stationary part) making around 2/3 of motor weight and a rotor (the rotating part). In conventional motors, the stator is typically made of laminated steel sheets with copper windings wound around them. This design has been around for decades and has served various applications well. However, it comes with limitations in terms of efficiency, size, and manufacturing complexity.

The PCB stator motor, on the other hand, replaces the traditional laminated steel stator core with a printed circuit board. This board contains conductive traces that form the coils necessary for electromagnetic induction. The rotor, usually a permanent magnet assembly, interacts with these coils to produce motion.

Axial Flux Motor vs Radial Flux Motor:

Radial flux motors and Axial flux motors are two different types of electric motors, each with its own advantages and applications.

Axial Flux Motor vs Radial Flux Motor
Axial Flux Motor vs Radial Flux Motor

Our conventional induction motors are radial flux motors, whereas PCB stator motors are axial flux motors.

Difference Between Axial Flux Motor and Radial Flux Motor:

Feature Axial Flux Motor Radial Flux Motor
Magnetic Flux Path Along the axis of rotation Radially from the center to the periphery
Size Typically more compact Larger in size compared to axial flux
Weight Lighter due to compact design Heavier due to larger size
Efficiency Generally higher efficiency at high speeds Efficiency can vary depending on design and speed
Cooling Requires efficient cooling due to compact design Cooling may be easier due to larger surface area
Torque Density Generally higher torque density Lower torque density compared to axial flux
Rotor Inertia Lower rotor inertia Higher rotor inertia
Construction Complex construction with multiple layers Simplified construction with fewer layers
Manufacturing Cost Can be more expensive due to complex winding Can be less expensive due to simpler winding
Applications – Electric vehicles – Industrial machinery
– Aerospace – Wind turbines
– Robotics – Electric appliances
– Renewable energy systems – Automotive applications

Axial flux motors have a more compact design and higher torque density, making them suitable for applications where space and weight are critical factors, such as electric vehicles and aerospace. On the other hand, radial flux motors are commonly used in industrial machinery, wind turbines, and electric appliances due to their simpler construction and broader availability.

In summary, while both types of motors have their own advantages and applications, the choice between them depends on factors such as space constraints, power requirements, and cost considerations.

Working of PCB Stator Motor:

PCB stator motors, also known as printed circuit board motors, operate on the same basic principles as traditional electric motors but feature a unique design where the stator windings are integrated directly onto a printed circuit board (PCB). Here’s how they typically work:

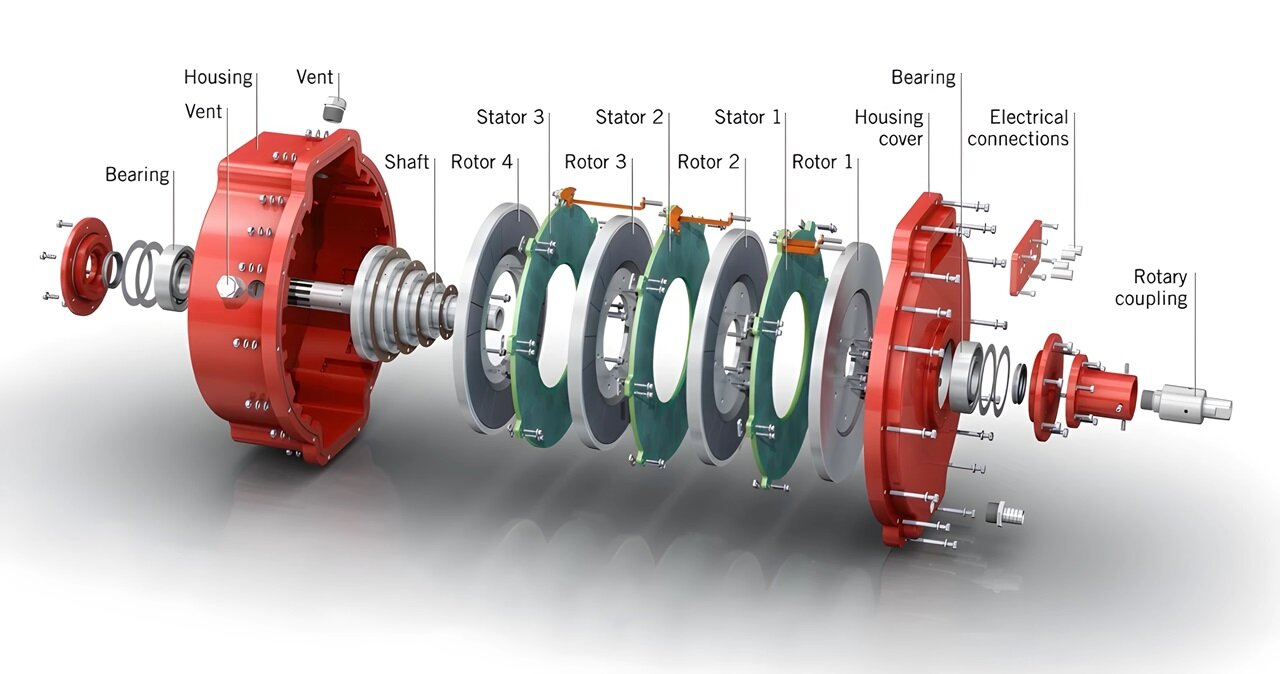

PCB Stator Motor Working Internal

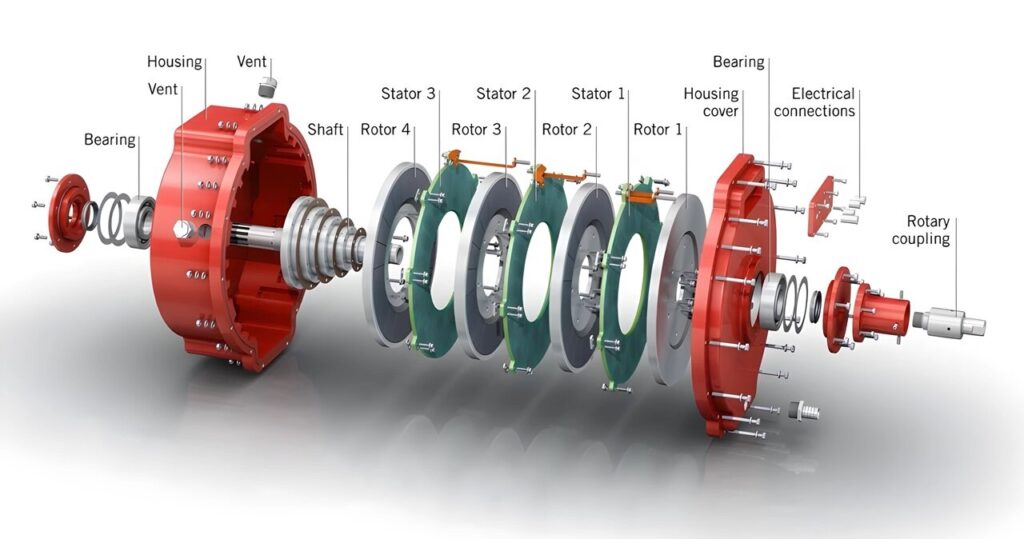

PCB Stator Motor Internal

Stator Design:

The stator of a PCB stator motor consists of a printed circuit board with conductive traces arranged in a specific pattern to form the motor windings. These windings create a magnetic field when an electric current passes through them.

Rotor Design:

The rotor in a PCB stator motor can vary depending on the motor type. It may consist of permanent magnets arranged in a cylindrical or disc-shaped configuration. In some designs, the rotor may also incorporate conductive elements.

Electromagnetic Interaction:

When an electric current is applied to the windings on the stator PCB, it generates a magnetic field. This magnetic field interacts with the magnetic field produced by the rotor (either permanent magnets or induced magnets), causing the rotor to rotate.

Brushless Operation:

Many PCB stator motors are brushless, meaning they use electronic commutation rather than physical brushes and commutators to switch the current in the stator windings. Electronic sensors detect the position of the rotor and control the timing of the current flow through the windings, ensuring the proper sequence of magnetic field generation to drive the rotor.

Directional Control:

By controlling the timing and sequence of current flowing through the stator windings, the direction of rotation of the motor can be controlled. This allows for precise control of the motor’s speed and torque.

Feedback Control:

PCB stator motors often incorporate feedback mechanisms such as Hall effect sensors or encoders to provide information about the rotor’s position and speed. This feedback enables closed-loop control systems to adjust the motor’s operation in real-time, improving performance and efficiency.

Power Supply:

PCB stator motors typically require a direct current (DC) power supply, although some designs may operate with alternating current (AC) through appropriate electronic control circuitry.

Integration with Electronics:

PCB stator motors can be easily integrated with other electronic components and systems, allowing for seamless control and communication in various applications such as robotics, consumer electronics, automotive, and industrial automation.

Advantages of PCB Stator Motors:

PCB (Printed Circuit Board) stator motors offer several advantages over traditional motors with wound stators. Here’s a list of some key advantages:

Compact Size:

PCB stator motors can be designed to be extremely compact due to the integration of the stator windings directly onto the circuit board, eliminating the need for separate winding coils and reducing overall size.


The absence of heavy copper windings makes PCB stator motors lighter compared to traditional motors, which is advantageous in applications where weight is a critical factor.

High Power Density:

PCB stator motors can achieve high power density due to the efficient use of space and materials, making them suitable for applications where space is limited but high-power output is required.


With carefully designed PCB layouts and optimized winding patterns, PCB stator motors can achieve high levels of efficiency, leading to reduced energy consumption and improved overall performance.


PCB stator motors allow for easy customization of winding patterns and configurations, making them adaptable to a wide range of applications and performance requirements.

Cost-effective Manufacturing:

Once the PCB design is finalized, the manufacturing process of PCB stator motors can be highly automated, resulting in cost savings compared to traditional motor manufacturing methods.

Reduced Manufacturing Complexity:

The manufacturing process for traditional stator cores involves stamping, laminating, and winding copper coils a process that can be labor-intensive and costly. PCB stator motors simplify this process by leveraging standard PCB fabrication techniques, reducing manufacturing time and costs.


The monolithic structure of PCB stator motors reduces the number of mechanical parts and potential points of failure, leading to increased reliability and longer lifespan.

Noise Reduction:

PCB stator motors can have reduced acoustic noise levels compared to traditional motors, especially at higher speeds, due to improved electromagnetic characteristics and reduced vibration.

Improved Thermal Management:

PCBs offer excellent thermal conductivity, allowing for efficient heat dissipation from the motor. This enhances the motor’s thermal performance, enabling it to operate at higher power densities without overheating.

Ease of Integration:

PCB stator motors can be easily integrated with other electronic components and systems, allowing for seamless integration into various applications such as consumer electronics, automotive, robotics, and more.


PCB stator motor designs can be scaled up or down easily to meet different power requirements or size constraints without significant redesign efforts, offering versatility in various applications.

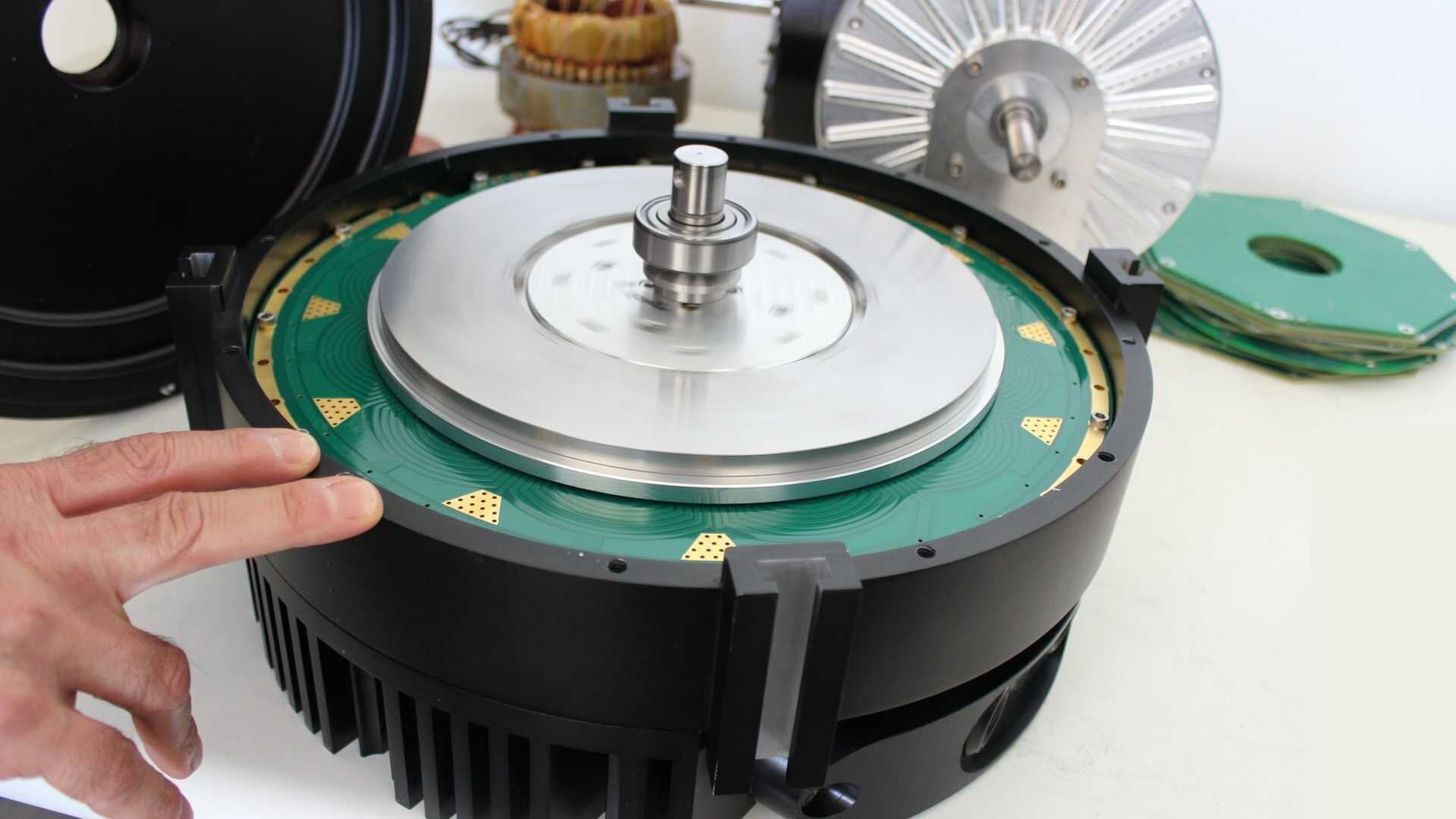

Printed Circuit Board Stator Motor
Printed Circuit Board Stator Motor

Applications of PCB Stator Motors:

PCB stator motors offer advantages in terms of compactness, lightweight, efficiency, and ease of customization, making them suitable for a wide range of applications where space, weight, and performance are critical factors.

Electric Vehicles (EVs):

PCB stator motors are particularly promising in the electric vehicle industry, where compactness, efficiency, and lightweight designs are paramount. These motors can power anything from hybrid cars to electric scooters, offering improved range and performance.

Industrial Automation:

In industrial automation, where motors drive conveyor belts, robotic arms, and other machinery, PCB stator motors can provide significant energy savings and space efficiency. Their compact design and customizable features make them ideal for various automation applications.

Renewable Energy Systems:

PCB stator motors can also find applications in renewable energy systems, such as wind turbines and hydroelectric generators. Their efficiency and flexibility make them suitable for capturing and converting renewable energy into electricity.

Military and Defense:

PCB stator motors are used in military and defense applications for various purposes, including UAVs, weapon systems, surveillance equipment, and unmanned ground vehicles (UGVs). Their lightweight and reliable performance are advantageous in these demanding environments.

Aerospace and UAVs:

PCB stator motors are used in aerospace applications, including unmanned aerial vehicles (UAVs) and satellites, where lightweight and compact propulsion systems are required. They can power propulsion systems, actuators, and control surfaces.


PCB stator motors are used in robotics applications for driving joints, grippers, and other moving parts. Their compact design and customizable features allow for integration into robotic systems where space and weight are critical considerations.

Medical Devices:

PCB stator motors are found in medical devices such as infusion pumps, surgical instruments, and diagnostic equipment. Their compact size, low noise, and high efficiency make them suitable for medical applications where precision and reliability are essential.

Consumer Electronics:

The compact size and energy efficiency of PCB stator motors make them attractive for consumer electronics, ranging from appliances like washing machines, refrigerators, vacuum cleaners, air conditioners to smaller devices like drones and wearable gadgets. Their small size and high efficiency make them ideal for driving pumps.

Challenges and Future Developments in PCB Stator Motor:

While PCB stator motors offer numerous benefits, they are not without challenges. One significant challenge is ensuring the reliability and durability of the PCB materials in harsh operating conditions, such as high temperatures and vibrations. Additionally, optimizing manufacturing processes to achieve cost-effectiveness on a large scale remains an ongoing focus for researchers and engineers.

Looking ahead, advancements in materials science, PCB fabrication techniques, and motor control algorithms are expected to further enhance the performance and applicability of PCB stator motors. Integration with emerging technologies like artificial intelligence and the Internet of Things (IoT) could open up new possibilities for smart and autonomous systems powered by these motors.


The PCB stator motor represents a transformative leap in electric motor technology, offering improved efficiency, compactness, and customization capabilities compared to traditional designs.

With applications ranging from electric vehicles to industrial automation and renewable energy, these motors are poised to play a crucial role in shaping the future of electrification across various industries. As research and development efforts continue, we can expect to see even more innovative uses and advancements in PCB stator motor technology in the years to come.
