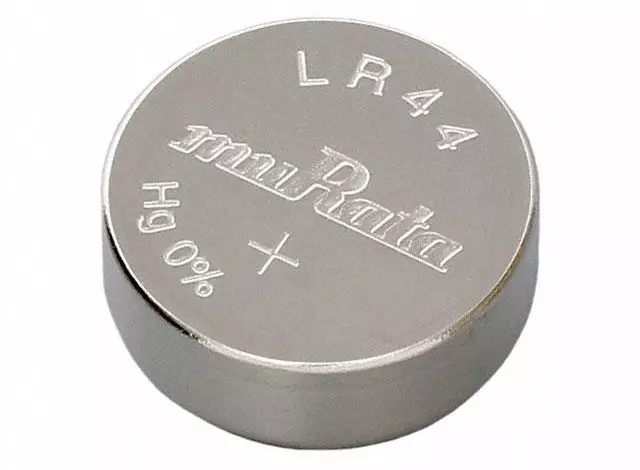

Known for its compact size and reliable performance, let’s explore the LR44 battery equivalent options. The LR44 is a widely used alkaline button cell battery with a nominal voltage of 1.5 volts and a capacity ranging from 100 to 150 mAh. Measuring 11.6 mm in diameter and 5.4 mm in height, it weighs around 2 grams.
The LR44 is frequently employed in a variety of devices, including watches, calculators, toys, digital thermometers, laser pointers, and remote controllers. Its primary benefits include cost-effectiveness, versatility across a variety of devices, and an extended shelf life (2-5 years).
There are a lot of LR44 battery equivalent such as AG13, A76, and 357. However, silver oxide batteries, such as the SR44, provide slightly higher voltage and superior performance in low temperatures.
Primary Features of LR44 Battery
The LR44 battery is a button cell battery that is widely used and possesses a number of significant characteristics:
Physical Characteristics:
- Dimensions: 11.6 mm in diameter and 5.4 mm in height
- Weight: Approximately 2.0 grams
- Nominal voltage: 1.5 volts
Technical Specifications:
- chemistry: manganese dioxide that is alkaline
- Battery capacity: 110-120 milliamperes
- Operating Temperature: 0°C to 60°C (optimal at 20°C)
- Shelf life: 2 to 5 years
Key Benefits:
- Energy density that is exceptionally high
- Consistent functionality
- Low-cost Compact design Low discharge rate
Frequently Used Applications:
- Timepieces
- Calculators that operate electronically
- Remote controls
- Electric devices
- Insulin pumps and thermometers are examples of medical devices.
- Flashlights and cameras
- Panels for security systems
LR44 Battery Equivalent
LR44 batteries have several equivalent options across different battery chemistries:
Alkaline Equivalents:
- AG13
- A76
- G13
- LR1154
- L1154
- 154
Silver Oxide Equivalents:
- SR44
- 357
- 303
- SR44W
- SR44SW
Key Characteristics of Equivalents:
- Most alternatives share the same physical dimensions: 11.6 mm diameter, 5.4 mm height.
- Nominal voltage ranges from 1.5V (alkaline) to 1.55V (silver oxide).
- Capacity typically between 130-175 mAh.
Performance Considerations
Silver oxide batteries (SR44, 357) offer:
- More stable voltage
- Longer lifespan
- Better performance in low-drain devices like watches
- Alkaline batteries (AG13, A76) are more cost-effective but have a more variable discharge curve
When selecting an equivalent, ensure compatibility with your specific device’s voltage and power requirements.
LR44 Battery Applications
LR44 batteries are versatile button cell batteries widely used in various electronic devices due to their compact size and reliable performance. Common applications include:
Watches and clocks: Analog and digital watches, as well as compact clocks, are powered by LR44 batteries, which ensures durable timekeeping.
Calculators: Pocket and scientific calculators frequently utilize LR44 batteries for extended operation.
Toys: LR44 batteries are frequently utilized in electronic games, remote-controlled vehicles, and musical toys.
Medical devices: LR44 batteries are employed in glucose meters, hearing aids, digital thermometers, and blood pressure monitors to ensure their consistent effectiveness.
Remote controls: LR44 batteries are the source of power for TV remotes, audio system controls, and other electronic device remote controls.
Key fobs and keychain lights: Car key fobs and compact LED lights frequently utilize LR44 batteries23.
Small electronic gadgets: Digital timers, laser pointers, electronic scales, and voice recorders are frequently powered by LR44 batteries.
LED flashlights: LR44 batteries are frequently employed to provide illumination in compact LED flashlights and keychain lights.
Cameras: The shutter and other functions of certain compact cameras are powered by LR44 batteries.
Security system control panels: Some security system components utilize LR44 batteries, including security system control panels.
The LR44 battery is an optimal power source for a diverse array of small electronic devices in both personal and professional environments due to its extended shelf life, stable voltage output, and versatility.
Advantages of Using LR44
LR44 batteries, which are also referred to as AG13 or A76 batteries, are alkaline button cells that provide a number of benefits for the operation of many electronic devices. The following are the primary advantages:
Cost-effectiveness:
In comparison to other battery varieties, such as silver oxide (SR44) batteries, LR44 batteries are generally more cost-effective. This makes them a popular choice among consumers who are seeking cost-effective power solutions for their commonplace devices.
Broad Compatibility:
These batteries are extremely compatible with a wide variety of devices, such as digital thermometers, wristwatches, calculators, laser pointers, and small electronic toys. Their adaptability renders them appropriate for both personal and professional applications.
Compact Dimensions:
LR44 batteries are capable of being incorporated into compact devices without sacrificing design or functionality due to their diminutive dimensions (11.6mm in diameter and 5.4mm in height). This attribute is especially advantageous for portable electronic devices.
Consistent Voltage Output:
The nominal voltage of LR44 batteries is approximately 1.5 volts, which is sufficient for a wide range of low-power applications. Despite the progressive decrease in voltage as they discharge, they continue to provide dependable performance throughout their period of use.
Shelf life that is reasonable:
LR44 batteries are a convenience for occasional use in devices that are not used daily, as they can be stored without significant loss of charge, with a shelf life spanning from 2 to 5 years.
Performance in a Variety of Environments:
These batteries are capable of operating in a variety of climatic conditions, including extreme temperatures, without compromising their functionality. This reliability is crucial for devices that may be utilized in a variety of environments or outdoors.
Availability:
LR44 batteries are readily accessible in both retail stores and online, facilitating their acquisition at any time. The ease with which consumers can locate replacements is guaranteed by their widespread popularity.
Elevated Energy Density:
LR44s are alkaline batteries, but their energy density is sufficient to operate devices for extended periods before requiring replacement.
LR43 vs. LR41 vs. LR44 Battery Equivalent
LR43 Battery Equivalent:
The button cell battery, LR43, is capable of being employed in a wide range of applications and has a plethora of equivalents. The following is a summary of its equivalents and pertinent information.
SR43: The LR43 is an exact complement for this silver oxide battery. It surpasses the LR43 in terms of capacity and voltage stability, with an average of 1.55V.
LR43W: This alternative term, which is frequently and interchangeably used, denotes the LR43 battery. It exhibits identical physical dimensions and voltage characteristics.
386: The LR43 and SR43 batteries are virtually identical to the 386 battery. A prolonged lifespan and a flatter discharge curve are provided by this silver oxide battery, which is suitable for applications that necessitate consistent power.
AG12: Although it is more frequently employed for other purposes, this battery may occasionally replace the LR43.
LR41 Battery Equivalent:
There are numerous alternatives to the LR41 battery that are suitable for a diverse array of applications. The following is a comprehensive inventory of its substitutes.
SR41: The SR41 is a silver oxide battery that is comparable to the LR41. It surpasses the LR41 in terms of longevity and voltage stability, with an average nominal voltage of 1.55V.
AG3: This alkaline battery, which is also known as LR41W, may be substituted for LR41. It is identical in terms of voltage and dimensions; however, it may not operate as efficiently in certain circumstances.
192: This battery can be used interchangeably with the LR41 in devices that necessitate this size of cell. 92A: This battery is similar to the 192 in that it can be used to replace the LR41 in compatible devices.
LR736: PR41: This code is occasionally employed to designate batteries that are equivalent in size and voltage to the LR41. This zinc-air battery is capable of operating at a voltage that is compatible with the majority of electronic devices; however, it necessitates air to function effectively.
LR44 Battery Equivalent:
There are numerous LR44 Battery Equivalent that are suitable for a wide range of applications. The following is a comprehensive inventory of its substitutes.
SR44: The SR44, a silver oxide battery, is a direct replacement for the LR44. In terms of capacity, it surpasses the LR44 by nearly 50% and exhibits a flatter discharge curve. The nominal voltage is typically 1.55V. Consequently, it is the preferred solution for devices that necessitate a consistent power supply over an extended period, particularly for low-drain applications like cameras and timepieces.
357 and 303: The LR44 and 357 and 303 batteries are interchangeable due to their identical voltage and physical dimensions. These are silver oxide batteries, which are more efficient than alkaline LR44 batteries, particularly in devices that necessitate a consistent voltage for extended periods.
AG13 and A76: AG13 and A76 are frequently promoted as alternatives to LR44. Despite the fact that their size and voltage are comparable to those of alkaline batteries, they may not have the same longevity or consistent output as silver oxide alternatives.
L1154: The battery designated as L1154 is frequently interchangeable with the LR44. However, minor thickness variations may result in compatibility issues with certain devices; therefore, it is crucial to ensure that the item fits adequately.
1/3N Lithium Battery: A 1/3N lithium battery is an effective substitute for devices that necessitate two LR44 batteries. It operates at 3V, which is equivalent to two stacked LR44 batteries, and performs optimally in cooler climates.
Flyback Converter vs Forward Converter – Detailed Comparison
FAQs About LR44 Battery
lr44 vs 357: Which One is better?
For High-Drain Devices: The LR44 may be more appropriate for electronic devices that necessitate an abrupt surge in power. Nevertheless, it may not last as long if it is used frequently.
For devices that have a minimal drain: The 357 is typically a superior option in low-drain applications that require consistent voltage and endurance. It is particularly beneficial for devices that require consistent power over time, such as timepieces.
Can I replace LR44 Battery with AA Battery?
It is not advisable to replace an LR44 battery with an AA battery, as the latter has a significantly different size, voltage, and usage. The LR44 is a diminutive button cell, while the AA is slightly larger, rendering them physically incompatible. Despite the fact that both devices generate 1.5 volts, their current capacity and composition are distinct. LR44 batteries are optimal for low-drain devices, such as timepieces and toys. However, AA batteries have the potential to be damaged by the higher currents they can handle. Use the appropriate battery type or equivalent (e.g., SR44, 357, AG13) to prevent injury and ensure proper functionality.
Can I replace LR44 Battery with 675 Battery?
The 675 battery is not a suitable replacement for an LR44 battery in the majority of systems, despite the fact that both batteries are 1.5V. This is due to the distinctions in size, chemistry, and application. The size, chemical composition, and intended purpose of an LR44 battery render it impossible to replace it with a 675 battery. The 675 is designed for low-drain devices, such as hearing aids, whereas the LR44 is more suitable for tiny electronics, watches, and toys.
What is an LR44 battery?
The LR44 is a compact, round alkaline button cell battery that is frequently employed in a variety of devices, including watch, calculator, toy, and camera models. It has a nominal voltage of 1.5V and a capacity that ranges from 100 to 150 mAh. Its dimensions are approximately 11.6 mm in diameter and 5.4 mm in height.
What are the equivalents of the LR44 battery?
A76, AG13, SR44 (silver oxide), 357, and 303 are some of the most common equivalents to the LR44 battery. The chemical compositions of these batteries may result in performance differences, despite the fact that they share similar dimensions and voltage.
Do I have the option of using an A76 battery in place of an LR44?
Indeed, the A76 battery is interchangeable with the LR44. Both batteries are compatible with devices that are designed to accommodate LR44 batteries due to their identical physical dimensions and specifications.
Is the LR44 battery equivalent to the AG13 battery?
Indeed, the LR44 and AG13 batteries are fundamentally identical. They are referring to a common variety of alkaline button cell battery that has a nominal voltage of 1.5 volts and similar physical dimensions.
What distinguishes LR44 and SR44 batteries?
The primary distinction between the two is their chemical composition: Alkaline battery with a nominal voltage of 1.5V: LR44.
SR44: A silver oxide battery that typically has a nominal voltage of approximately 1.55V and provides superior performance, including a flatter discharge curve and approximately 50% more capacity than the LR4412.
Is it possible to recharge an LR44 battery?
LR44 batteries are not intended for recharging. Attempting to recharge these single-use alkaline batteries may result in rupture or leakage.
Which devices are frequently equipped with LR44 batteries?
LR44 batteries are extensively employed in a variety of applications, including watches, calculators, toys, medical devices (such as glucometers), and small electronic devices.
What is the lifespan of LR44 batteries?
LR44 batteries have a shelf life of 2 to 5 years, which is contingent upon their utilization patterns and storage conditions.
