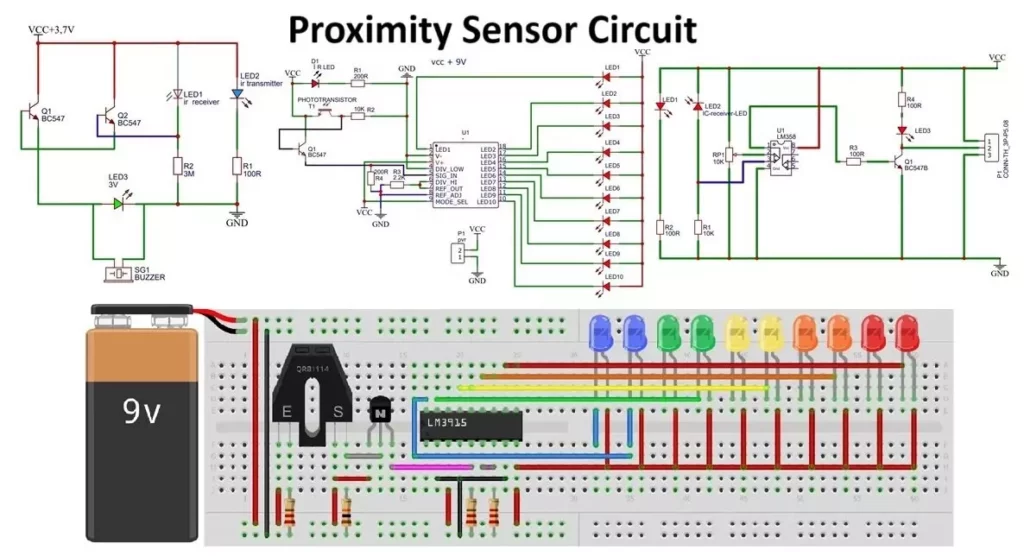

Proximity Sensor Circuit

Proximity Sensor Circuit

Here is a simple proximity sensor circuit which shows proximity of an object by LED bar graph. Also, you will see two other simple proximity sensor designs.

Proximity sensors are devices that detect the presence of an object within a certain range without any physical contact. They are widely used in various applications such as industrial automation, mobile phones, and security systems. A common type of proximity sensor is the infrared (IR) proximity sensor.

BJT Based IR Proximity Sensor Circuit:

Proximity Sensor Circuit Diagram
Proximity Sensor Circuit Diagram

Circuit Components:

  1. IR LED: Emits infrared light.
  2. Photodiode/Phototransistor: Receives the reflected IR light from the object.
  3. Resistors (R1, R2): Used to limit current and set the operating points of components.
  4. Transistor (Q1, Q2): Acts as a switch to amplify the signal.
  5. Buzzer (SG1): Creates alarm when object is detected.
  6. Power Supply (Vcc & GND): Typically, 5V to 12V DC depending on the sensor requirements.

Working Principle:

  1. Emission: The IR LED emits infrared light continuously.
  2. Reflection: When an object comes within the range of the sensor, the IR light reflects off the object.
  3. Detection: The reflected IR light is detected by the photodiode/phototransistor.
  4. Signal Processing and Output:

Steps to Build the Circuit:

  1. Connect the IR LED: Connect the IR LED in series with a current-limiting resistor (R1) to GND.
  2. Position the Photodiode/Phototransistor: Place the photodiode or phototransistor in such a way that it can receive the reflected IR light.
  3. Add the Resistors: Add 3MΩ Resistor R2 in series with photodiode as per circuit to ensure proper signal conditioning.
  4. Transistor Stage: Connect the transistor (Q1, Q2) to amplify the signal received by the photodiode/phototransistor.
  5. Power Supply: Ensure the entire circuit is powered with the correct voltage supply.

Proximity Sensor by LM358 IC:

LM358 Proximity Sensor Circuit
Proximity Sensor Circuit by LM358 IC

Circuit Components:

  1. IR LED: Emits infrared light.
  2. Photodiode/Phototransistor: Receives the reflected IR light from the object.
  3. Resistors (R1, R2, R3, R4, RP1): Used to limit current and set the operating points of components.
  4. Transistor (Q1): Acts as a switch and amplifies the signal.
  5. Op-Amp (U1): LM358 IC Compares the signal from the photodiode to a reference value.
  6. Power Supply (Vcc and GND): Typically, 5V to 12V DC depending on the sensor requirements.

Working of Proximity Sensor by LM358:

  1. Emission: The IR LED emits infrared light continuously.
  2. Reflection: When an object comes within the range of the sensor, the IR light reflects off the object.
  3. Detection: The reflected IR light is detected by the photodiode/phototransistor.
  4. Signal Processing and Output:

Steps to Build the Circuit:

  1. Connect the IR LED: Connect the IR LED in series with a current-limiting resistor (R2).
  2. Place Photodiode/Phototransistor: Position the photodiode or phototransistor in such a way that it can receive the reflected IR light.
  3. Add the Resistors: Connect the appropriate resistors (R1, R3, R4, RP1) as per the circuit diagram to ensure proper signal conditioning.
  4. Transistor Stage: Connect the transistor (Q1) to amplify the signal received from LM358 IC and drive LED3.
  5. Comparator/Op-Amp: Add operational amplifier LM358 IC to process the signal and provide a digital output.
  6. Power Supply: Ensure the entire circuit is powered with the correct voltage supply.

Proximity Sensor Circuit with LED Bar-Graph:

Below is a simple circuit diagram for an IR proximity sensor with LED bar graph:

Proximity Sensor Circuit Diagram
Proximity Sensor Circuit Diagram with LED Graph

Circuit Components:

  1. IR LED: Emits infrared light (QRB1114 is an alternate module).
  2. Photodiode/Phototransistor (T1): Receives the reflected IR light from the object.
  3. Resistors (R1, R2, R3, R4): Used to limit current and set the operating points for components.
  4. Transistor (Q1): Acts as a switch and amplifies the signal.
  5. LM3915 IC (U1): An 18-pin integrated circuit that detects analog signal voltage levels and drives a 10-LED bar or dot display accordingly.
  6. 10 LEDs: 5 pair of LEDs Red, Orange, Yellow Green and Blue.
  7. Power Supply (Vcc & GND): Typically, 5V or 12V DC depending on the sensor requirements.

IR Proximity Sensor Working Principle:

Emission: The IR LED present in QRB1114 module emits infrared light continuously.

Reflection: When an object comes within the range of the sensor, the IR light reflects off the object.

Detection: The reflected IR light is detected by the phototransistor present in QRB1114 module.

Signal Processing and Display:

Proximity Sensor Circuit
Proximity Sensor Circuit

Steps to Build the Circuit:

  1. Connect the IR LED: Connect IR LED in series with a current-limiting resistor (R1) to GND.
  2. Position the Photodiode/Phototransistor: Place the photodiode or phototransistor in such a way that it can receive the reflected IR light. Add R2 in series with phototransistor.
  3. Transistor Stage: Connect the transistor (Q1) to amplify the signal received by the photodiode/phototransistor.
  4. LM3915 IC: Integrate the LM3915 IC with circuit to process the signal and provide a digital output to control LEDs.
  5. Power Supply: Ensure the entire circuit is powered with the correct voltage supply.

Testing the Circuit:

  1. Power On: Supply the circuit with the specified voltage.
  2. Object Detection: Place an object within the detection range of the sensor.
  3. Output Observation: Observe the output signal by LED, buzzer, or any other output device connected to the Circuit output. The output should change state when an object is detected.

Proximity Sensor Applications:

Proximity sensors are widely used in various applications due to their ability to detect objects without physical contact. Here are some common applications of proximity sensors:

1. Industrial Automation

2. Mobile Devices

3. Automotive Industry

4. Security Systems

5. Consumer Electronics

6. Healthcare

7. Manufacturing and Processing

8. Transportation and Logistics

9. Aerospace and Defense

10. Agriculture

11. Retail

12. Construction

13. Utilities

Proximity sensors play a critical role in improving efficiency, safety, and convenience across various industries and applications.

The above simple IR proximity sensor circuits can be used as a basic model for understanding how proximity sensors work and can be further enhanced for specific applications.
